... use the Contextual Instruments LIVE MODE ?

A few words of introduction

To use LIVE MODE, you need at least a sensor, the mobile application, and optionally the cloud platform. While the cloud platform is not required to start a measurement, it is essential for retrieving your data later. For a detailed overview of these three components, please refer to their respective sections.

Let's measure !

Step 1 : the sensor

  • Power on the sensor by pressing its button.

Step 2 : the mobile application

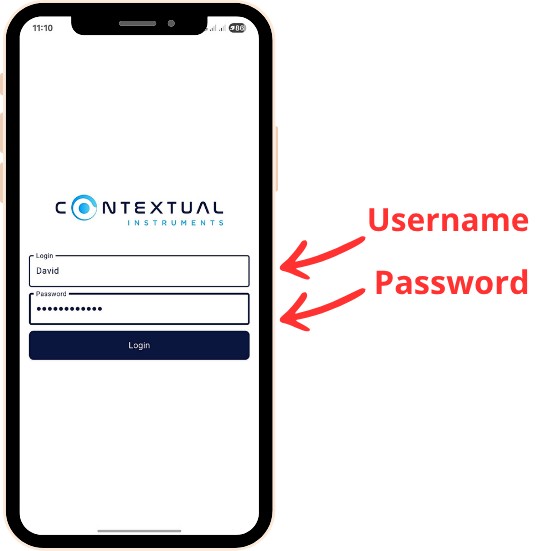

  • Launch the mobile application and log in using your username and password.

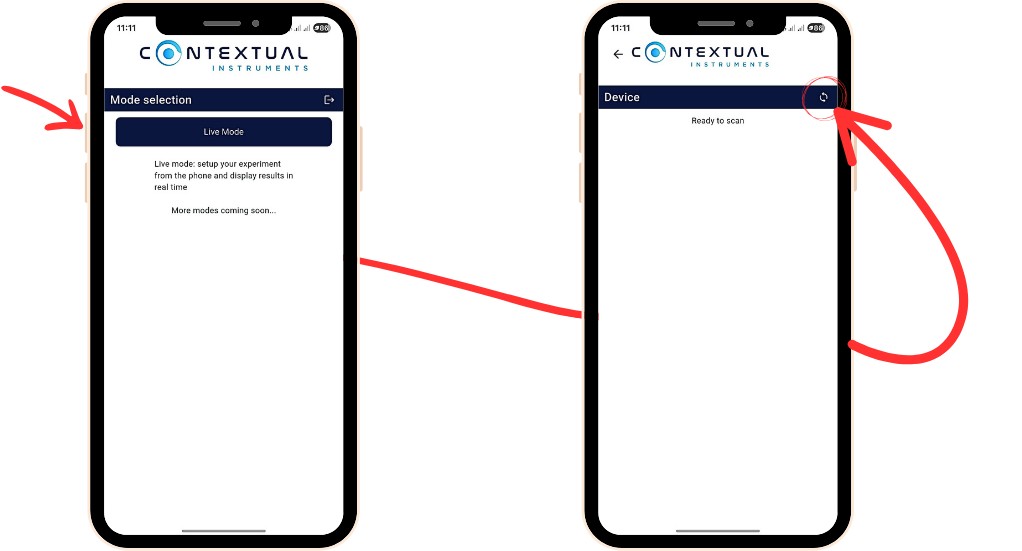

  • Select the Live Mode option.

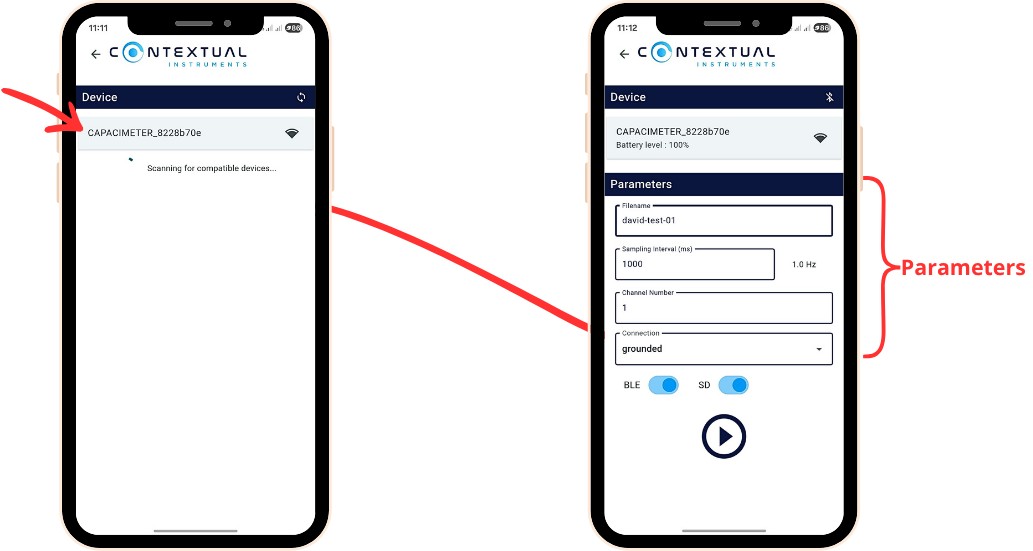

  • Next, scan for nearby sensors.

  • After the sensor is detected, select it to view its parameters, which can be adjusted as needed.

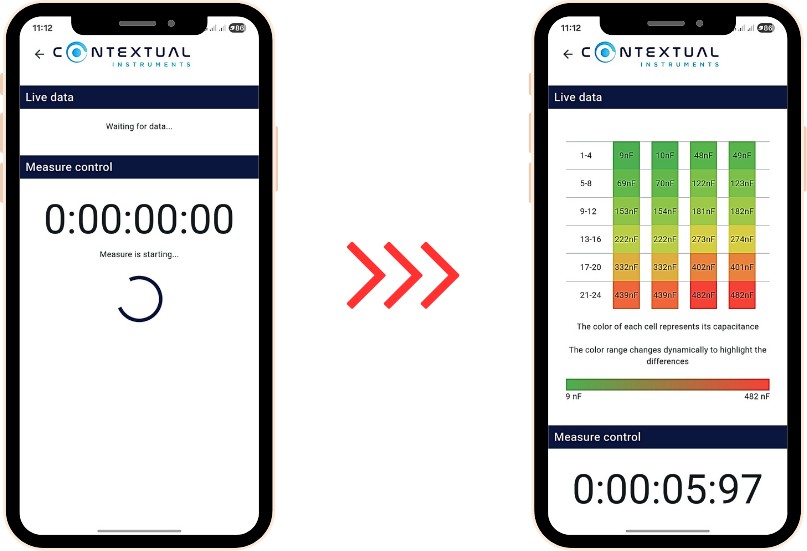

  • Press the "play" icon to initiate the live measurement. The timer will start instantly, and the data will be displayed in real-time.

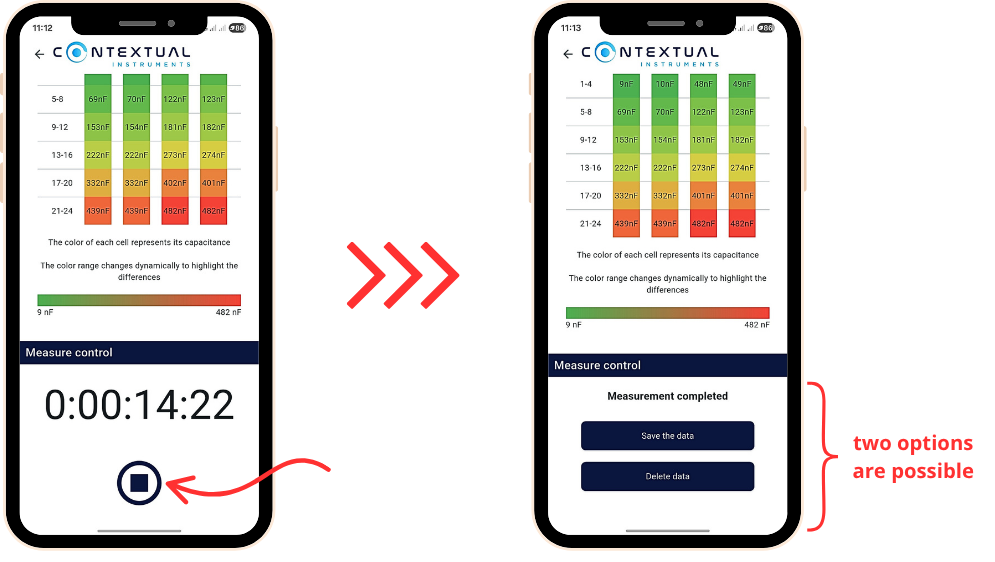

  • To finish your measurement, tap the "stop" icon at the bottom of the screen. You will then have two options: save your measurement to the cloud platform or delete it.

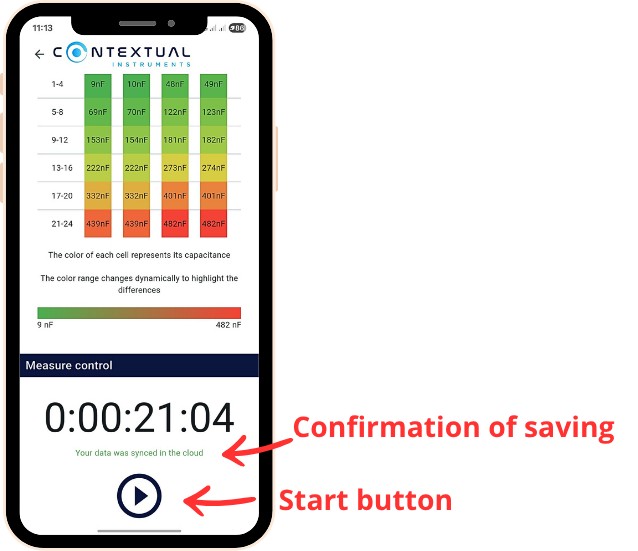

  • A confirmation message will appear, indicating that the data has been successfully saved. You can to start a new measurement if desired. Otherwise, you can choose to log out.

Step 3 : the platform

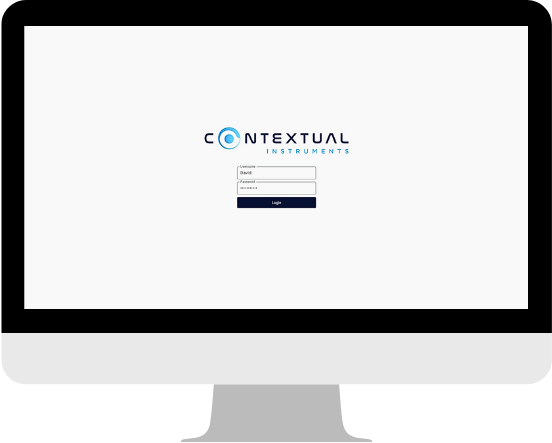

  • To access your saved measurements, log in to the platform as the first step.

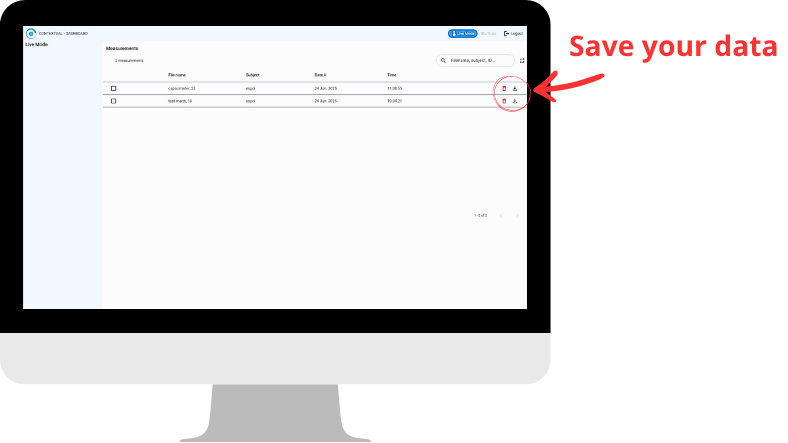

  • All measurement data will be displayed, and you can download it as a CSV file.
